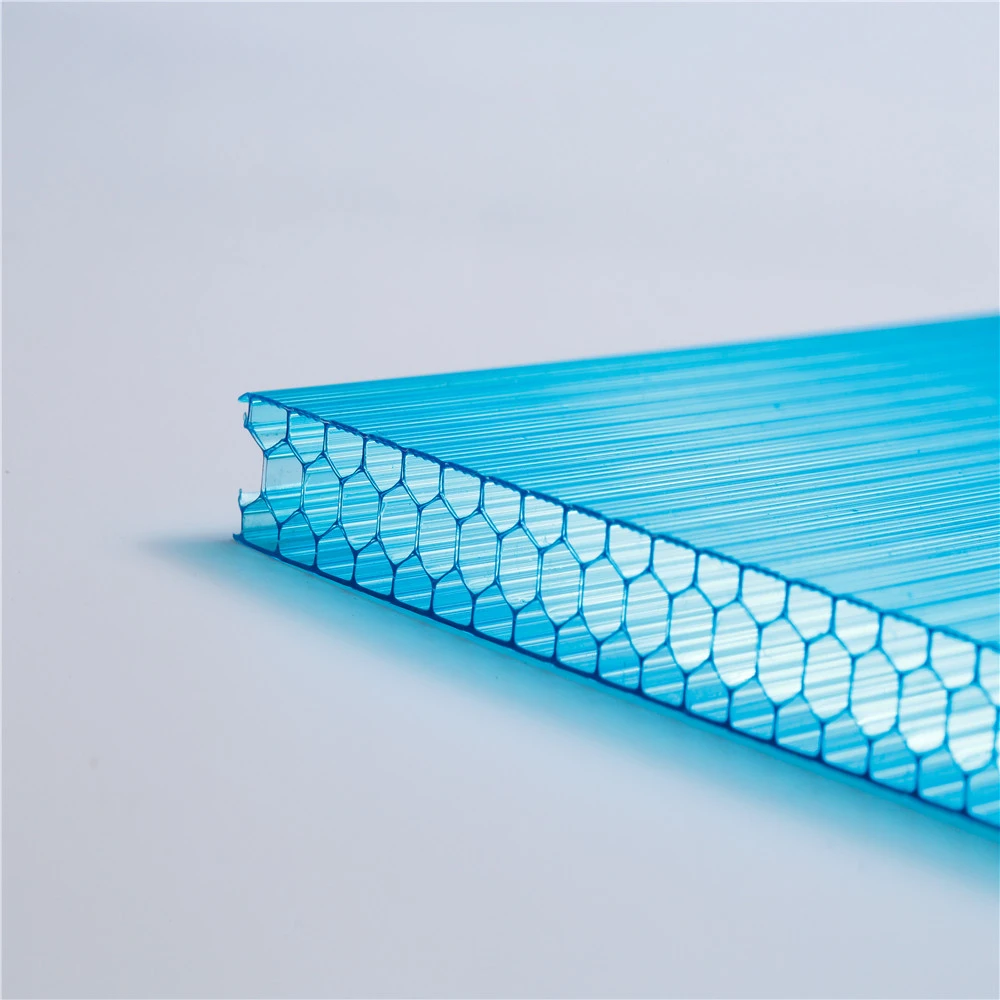

Honeycomb polycarbonate sheets are a specific type of multiwall polycarbonate sheets with honeycomb construction. They are stronger and more rigid than twin-wall polycarbonate sheets. The honeycomb structure creates an excellent insulating air space. So it offers higher thermal insulation and higher impact resistance. The colors of honeycomb polycarbonate are available in clear, bronze, lake-blue, green, and opal. The thickness is 8mm, 10mm, 12mm, 14mm, 16mm, and 18mm.
Applications:
The honeycomb polycarbonate can be used for stadium sunlight roofs, walk the street roofs, and building cladding.
Benefits:
1. The multi-layer diamond structure inside the honeycomb polycarbonate sheets has strong impact resistance. It can resist harsh weather conditions, wind and snow.
2. The transparent honeycomb polycarbonate panel has good light transmittance, with a light transmittance of 58%, allowing sunlight to enter. At the same time, the diamond-shaped structure of the polycarbonate honeycomb panel is used for the roof, which can reflect the light well, effectively avoid direct sunlight, and make the light distribution more uniform and soft.
3. Polycarbonate honeycomb panels are used for outdoor use, and features rain resistance, lightweight and east to install. At the same time, the surface has a UV protective coating, using co-extrusion technology, which can resist 99% of ultraviolet rays. It can effectively prolong the service life of the polycarbonate and resist aging.
4. Anti-fog polycarbonate honeycomb panels are widely used in greenhouses cover. Not only has excellent thermal insulation performance but also can effectively reduce the possibility of insect disasters.
Impact strength | 850J/m impact strength of solid PC sheets is 250 times of glass, 20-30 times of PMMA sheet |
Light transmission | 80%-90% for different thickness of clear color |
UV resistance | 50μm UV layer, can filter 99% ultraviolet radiation in sunlight |
Coefficient of thermal expansion | 0.065 mm/m°c |
Service temperature | -40°c to 120°c |
Heat conductivity | 2.3-3.9 W/m2 °c |
Tensile strength | >60N/mm2 |
Flexural strength | 100N/mm2 |
Tensile street at break | >65mPa |
Heat deflection temperature | 140°c |
Soundproof index | 4mm thickness--27dB,5mm--28dB,6mm--29dB |
